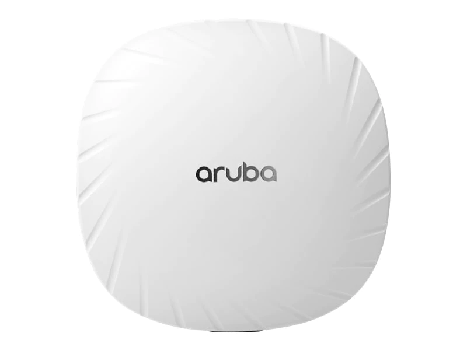

Aruba AP-505 Access Points

Specifications

Models

AP-505

AP type:

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2×2 MIMO

5GHz radio:

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz radio:

Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously

Maximum number of associated client devices:

Up to 256 associated client devices per radio

Maximum number of BSSIDs:

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply):

2.400 to 2.4835GHz

5.150 to 5.250GHz

5.250 to 5.350GHz

5.470 to 5.725GHz

5.725 to 5.850GHz

Available channels:

Dependent on configured regulatory domain

Supported radio technologies:

802.11b: Direct-sequence spread-spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel)

Supported modulation types:

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11n high-throughput (HT) support: HT20/40

802.11ac very high throughput (VHT) support: VHT20/40/80

802.11ax high efficiency (HE) support: HE20/40/80

Supported data rates (Mbps) 1:

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM

802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

802.11n/ac packet aggregation: A-MPDU, A-MSDU

Transmit power: Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

2.4 GHz band: +21 dBm (18dBm per chain)

5 GHz band: +21 dBm (18 dBm per chain)

Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

Wi-Fi Antennas

AP-505

Two integrated dual-band downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 4.3dBi in 2.4GHz and 5.6dBi in 5GHz.

OTHER INTERFACES

E0: Ethernet wired network port (RJ-45):

Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX

PoE-PD: 48Vdc (nominal) 802.3af/at PoE (class 3 or 4)

802.3az Energy Efficient Ethernet (EEE)

DC power interface:

12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector):

Capable of sourcing up to 1A / 5W to an attached device

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio:

BLE: up to 7dBm transmit power (class 1) and -93dBm receive sensitivity (1Mbps)

Zigbee: up to 6dBm transmit power and -96dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.3dBi

Visual indictors (two multi-color LEDs): for System and Radio status

Reset button: factory reset, LED mode control (normal/off)

Serial console interface (proprietary, micro-B USB physical jack)

Kensington security slot

Power sources and power consumption

The AP supports direct DC power and Power over Ethernet

The AP supports direct DC power and Power over Ethernet

When both DC and PoE power sources are available, DC power takes priority over PoE units

Power sources are sold separately; see the 500 Series Ordering Guide for details

When powered by DC or 802.3at (class 4) PoE, the AP will operate without restrictions units

When powered by 802.3af (class 3) PoE and with the IPM feature disabled, the AP will disable the USB port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed.

Maximum (worst-case) power consumption (without / with a USB device attached):

DC powered: 8.9W / 14.2W

PoE powered (802.3at): 11.0W / 16.5W

PoE powered (802.3af): 11.0W / 13.5W

This assumes that up to 5W is supplied to the attached USB device

Maximum (worst-case) power consumption in idle mode: 4.3W (DC) or 6.1W (PoE)

Maximum (worst-case) power consumption in deep-sleep mode: 1.7W (DC) or 3.3W (PoE)

MOUNTING

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the Aruba mount kits (sold separately); see the ordering Information section below for details.

Mechanical

Dimensions/weight (AP-505; unit, excluding mount bracket):

160mm (W) x 161mm (D) x 37mm (H)

Weight: 500g

Dimensions/weight (AP-505; shipping):

193mm (W) x 183mm (D) x 63mm (H)

Weight: 645g

ENVIRONMENTAL

Operating conditions

Temperature: 0°C to +50°C / +32°F to +122°F

Humidity: 5% to 93% non-condensing

AP is plenum rated for use in air-handling spaces

ETS 300 019 class 3.2 environments

Storage and transportation conditions

Temperature: -40°C to +70°C / -40F to +158°F

Humidity: 5% to 93% non-condensing

ETS 300 019 classes 1.2 and 2.3 environments

RELIABILITY

Mean Time Between Failure (MTBF): 1.3Mhrs (148yrs) at +25°C operating temperature

REGULATORY

FCC/ISED

CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

UL/IEC/EN 60950

EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

REGULATORY MODEL NUMBER

AP-505: APIN0505

CERTIFICATIONS

UL2043 plenum rating

Wi-Fi Alliance:

Wi-Fi CERTIFIED a, b, g, n, ac

Wi-Fi CERTIFIED 6 (ax)

WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)

WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband

Wi-Fi Location

Passpoint (release 2)

Bluetooth SIG

Ethernet Alliance (POE, PD device, class 4)

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS and Aruba InstantOS 8.6.0.0
